Kathwada, Ahmedabad, Gujarat
- GST NO. : 24DXPPP2077D1ZA
3.15 Lac - 4.55 Lac / Piece
| Business Type | Manufacturer, Supplier |
| Model | CL1390, CL1410, CL1313 |
| Laser Type | Co2 |
| Head Type | Single Head or Dual Head |
| Click to view more | |
Preferred Buyer From
| Location | Anywhere in India |
Product Details
Working Area
1300*900mm / 1400*1000mm / 1300*1300mm
Laser Power
100W/130W/150W
Laser Source
Sealed Glass Co2 Laser Tube (Reci/Yongli/EFR)
Usage
Small Business Use Co2 Laser Cuttng Engraving Machine for Nonmetal Materials Cutting
Application Material
Wood, Acrylic, MDF, Leather, Cloth, Rubber, Plastic, Fabric, Paper, Plywood
Machine Body
Mild Steel (High Strength Metallic)
X Y Axis System
Belt (Imported)
Z Axis System
Manual
Guide System
X Axis = Inside Y = Outside
Co2 Glass Tube
Yongli or Reci or EFR
Working Table
Honey Comb or Knife Strip
Controller
Ruida RD 6445S (EC) (New model)
Cooling Mode
Water Chiller (S & A 5200 CW Series)
Blower (Air Exhaust)
550 Watt
Power Supply
ZYE Power Supply (Display Screen, Yongli)
Air Compressor
135 Watt
Operating System
Windows 7 32 bit/64 bit/windows 10
Interface System
USB Interface
Driving System
Stepper Motor
Add. Feature Accessories
S&A Chiller CW5200 TG, Hailea Air Compressor ACO-009D 135W, Exhaust Fan 550W, Tool Box
Warranty
Full Machine 1 Year, Laser Tube 6 Month
Brand Name
Creative Laser
Country of Origin
India
Supported File Format
PLT, DXF, BMP, JPG, GIF, PNG
Max Cutting Thickness
12 mm Acrylic, 8 mm MDF
Min Letter Cutting
1 mm (English Font)
Running Environment
45 Degree C; Humidity 5%-95% (without condensed water)
Working Voltage
Single Phase AC220V±10%, 50-60Hz (Required Earthing)
Weight
350-400 Kg (Depend On Model)
Cutting Speed
500-600mm/sec
Engraving Speed
800-1000mm/sec
Working Speed
600mm/sec
Travelling Speed
<500mm/sec
Power Consumption
2 – 3 Unit / Hours
Power Adjustment
1 to 100%
Reposition Accuracy
+0.01mm
Packaging Details
High Strength Wooden Box

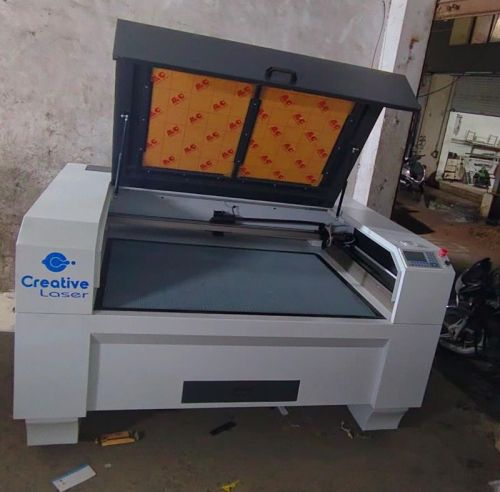

Looking for "Co2 Laser Cutting & Engraving Machine for Small Business" ?
